Explaining the code: the init section

Let’s have a look at the code and see what it does. Here are the first few instructions:

mem[0]  = 0x173C
mem[1]  = 0x1639
mem[2]  = 0x1200
mem[3]  = 0x1100

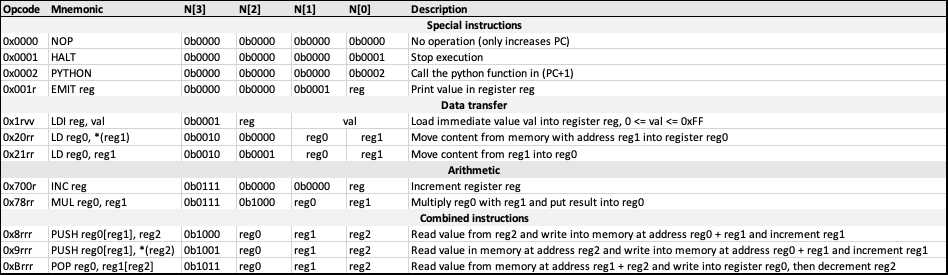

The first instruction 0x173C is of the form LDI reg, val with reg equal to 0x7and val equal to 0x3C. All together this results in LDI 7, 0x3C. Register 7 is also called the return stack base pointer RB and 0x3C is 60 in decimal. This gets us LDI RB, 60.

Similar considerations for the next three instruction lead to:

LDI RB, 60
LDI DB, 57
LDI RS, 0
LDI SP, 0

All of these instructions are decoded by this piece of code:

elif (n3 == 0x1):                 # LDI reg, val
    self.R[n2] = (n1 << 4) + n0

They initialize the return and the data stacks with base pointer and index each. The memory is prefilled with sentinel values 0xFFFF and 0x9999 respectively to make debugging easier:

mem[57] = 0xFFFF    <--- Start of data stack
mem[58] = 0xFFFF
mem[59] = 0xFFFF
mem[60] = 0x9999    <--- Start of return stack
mem[61] = 0x9999
mem[62] = 0x9999

Of course, the stack would normally be put much higher into memory to leave room for longer programs and you would use labels like DS_START and RS_START for referencing the base addresses.
